Gas Powered
HD Series Gas
Easily converts from cart to skid
Corrosion-resistant and light-weight, Kärcher’s HD aluminum pressure washers can be utilized as a cart or a skid for maximum cleaning versatility and durability. These reliable Honda powered pressure washers offer a bypass loop for additional pump protection, 7-year pump warranty and flat-free tires.
Features:
Reliable Honda GX engine
Belt or direct drive models
Weldless, corrosion resistant aluminum frame
Modular design - converts easily from cart to skid
Model | GPM | PSI | Drive | CC | Engine | Pump | Ship Weight | Ship Dimensions |
HD 3.0/27 G | 3.00 | 2700 | Direct | 196 | Honda GX200 | Crankcase | 112 | 45” x 28” x 29” |
HD 3.5/35 G | 3.50 | 3500 | Direct | 270 | Honda GX270 | Crankcase | 130 | 45” x 28” x 29” |
HD 4.0/40 Ge | 4.00 | 4000 | Direct | 389 | Honda GX390 | Crankcase | 149 | 45” x 28” x 29” |
HD 4.0/40 Ge* | 4.00 | 4000 | Direct | 389 | Honda GX390 | Crankcase | 158 | 45” x 28” x 29” |
HD 3.0/27 GB | 3.00 | 2700 | Belt | 196 | Honda GX200 | Crankcase | 123 | 45” x 28” x 29” |
HD 3.0/35 GB | 3.50 | 3500 | Belt | 270 | Honda GX270 | Crankcase | 156 | 45” x 28” x 29” |
HD 4.0/40 GB | 4.00 | 4000 | Belt | 389 | Honda GX390 | Crankcase | 160 | 45” x 28” x 29” |
*Electric start available on select models
HD Cart
Compact and dependable
The HD Carts are tough gasoline-powered direct-drive cold water machines that deliver cleaning power of up to 4000 PSI. Built on compact sturdy steel frames, each unit features a dependable industrial-grade Honda engine, Kärcher crankcase pump, hose/gun rack, detergent injection, and tubed pneumatic tires.
Features:
Steel frame with powder coat finish
Commercial grade Honda GX engine
Cleaning power up to 4000 PSI
Industrial direct-drive Kärcher crankcase pump
Model | GPM | PSI | Drive | CC | Engine | Pump | Ship Weight | Ship Dimensions |
HD 2.3/24P G | 2.30 | 2400 | Direct | 163 | Honda GX160 | Kärcher KP | 130 | 35" x 21" x 24" |
HD 3.0/30 P | 3.00 | 3000 | Direct | 270 | Honda GX270 | Kärcher KP | 175 | 35" x 21" x 24" |
HD PB Cart
Reliable and professional
Our cold-water HD PB series provide a broad selection of rugged belt-drive units, all with reliable Honda GX engines, which deliver cleaning volume of up to 3.7 GPM. Each model is ETL certified to UL safety standards and comes with a rugged steel chassis, cast iron belt pulley system, flat-free tires, and industrial-grade Kärcher crankcase pump.
Features:
Powder coated steel chassis
Reliable Honda GX engine
Onboard hose and trigger gun holder
Water volume up to 3.7 GPM
Industrial belt-drive Kärcher pump
Flat-free tires
Quick connect nozzles
Model | GPM | PSI | Drive | CC | Engine | Pump | Ship Weight | Ship Dimensions |
HD 3.0/30 PB | 3.0 | 3000 | Belt | 270 | Honda GX270 | Kärcher KB | 225 | 45 x 26 x 24 |
HD 3.7/35 PB | 3.7 | 3500 | Belt | 389 | Honda GX390 | Kärcher KM | 250 | 45 x 26 x 24 |
HD 3.0/40 PB | 3.0 | 4000 | Belt | 389 | Honda GX390 | Kärcher KM | 250 | 45 x 26 x 24 |
HD PB/DB CAGE
Extra rugged and powerful
Our roll cage models are the most powerful units in our cold water line, with cleaning power of up to 5000 PSI. Protected by a rugged powder coated roll cage built of 1-1/4” steel, the cage units feature powerful Vanguard, Honda or Kohler engines, tri-plunger oil bath Kärcher pumps, flat-free tires, and an extra rugged belt-drive assembly with notched V belts and cast iron pulleys. Both models are ETL certified to UL safety standards.
Features:
Belt-drive
Rugged steel chassis & roll cage
Honda engine
Cleaning power up to 5000 PSI
Electric start on dual-axle model
Industrial belt-drive Kärcher pump with 7-year warranty
Flat-free tires
Model | GPM | PSI | Drive | CC | Engine | Pump | Ship Weight | Ship Dimensions |
HD 3.7/35 PB Cage | 3.7 | 3500 | Belt | 389 | Honda GX390 | Kärcher KM | 350 | 42 x 26 x 30 |
HD 4.0/40 PB Cage | 4.0 | 4000 | Belt | 479 | Vanguard 16 | Kärcher KT | 470 | 42 x 26 x 30 |
HD 4.0/50 PeB Cage | 4.0 | 5000 | Belt | 688 | Honda GX630 | Kärcher KX | 495 | 42 x 26 x 30 |
HD 4.5/50 PeB Cage | 4.5 | 5000 | Belt | 688 | Honda GX630 | Kärcher KX | 500 | 42 x 26 x 30 |
HD SERIES GAS SKID
Cleaning on the go
The perfect accompaniment to Kärcher's HD Series Gas pressure washers – these mild steel skids offer two configurations: 1. Skid with a 50 gallon water tank and one 100' hose reel or 2. Skid with two 100' hose reels. The HD Series Gas skids fit within a standard UTV / ATV bed and work with three different direct drive aluminum pressure washers to offer ultimate portability and usability for various applications.
Durable:
50 gallon water tank (HD Pallet Skid with Tank only)
Forklift holes Includes skid feet
1 to 2, 100' hose reels
Fits within standard UTV/ATV bed
Assembly required
*Pressure washer sold separate.
Model | Frame | Description | Compatible Pressure Washer | Ship Weight | Ship Dimensions |
HD Pallet Skid with Tank | Mild Steel | 50 gal water tank and 1 hose reel | HD 3.0/27 G 9.807-719.0 HD 3.4/35 G 9.807-720.0 HD 4.0/40 G 9.807-721.0 |
185 | 51 x 32 x 45 |
HD Pallet Skid with 2 Hose Reels | Mild Steel | 2 hose reels | HD 3.0/27 G 9.807-719.0 HD 3.4/35 G 9.807-720.0 HD 4.0/40 G 9.807-721.0 |
172 | 51 x 32 x 45 |
Electric Powered
HD 2.0/1000 Dual Mister
All-in-one Mister and pressure washer
Kärcher’s cold water, corrosion-resistant aluminum Dual Mister easily converts from a pressure washer to a mister for dispensing sanitizer or disinfectants, such as Vital Oxide®. This reliable electric powered pressure washer comes standard with a humidifying nozzle and an Easy!Valve that allows the operator to easily switch from pressure washing to misting mode. It can convert from a cart to skid, provides a bypass loop for additional pump protection, and it offers a low profile handle and compact footprint, making it easy to maneuver. In short, this unit is designed to combat viruses and bacteria in misting mode, or it can be used as a high pressure washer to clean surfaces. Your choice.
Technical Data:
HD 2.0/1000 | High Pressure Mode | Mister Mode |
GPM | 2.00 | 0.023 – 0.06 |
PSI | 1000 | 107 – 480 |
Drive | Direct | Direct |
Electrical | 120V / 1ph | 120V / 1ph |
Amps | 13.60 | 6.5 – 8.0 |
Pump | Kärcher KF | Kärcher KF |
Ship Weight | 161 lbs | 161 lbs |
Ship Dimensions | 41” x 22” x 35” | 41” x 22” x 35” |
EASY!VALVE: allows user to vary the operating pressure to control the
flow. Possible to use 1 or 2 trigger guns at the same time in
misting mode.Misting Nozzle: 1/4 NPTF brass adapter delivers finely atomized cone
spray pattern.High Pressure Hose: 75 foot 1/4-inch, non-marking high pressure hose.
PRO HD 400 ED
Practical anywhere
The PRO HD 400 Ed is a light weight, durable and compact cold water pressure washer that offers ultimate mobility for on-site applications and is designed to be stored, transported and operated in the vertical and horizontal position. It's features include a reliable 3-piston axial-pump with a brass cylinder head, an automatic pressure relief system for protecting the pump and storage options for accessories. This unit is certified to UL and CSA safety standards.
Specs:
Pro HD 400 ED
1.7 GPM
1300 PSI
Direct Drive
120V / 1ph ~ / 60 Hz
14 Amps
Kärcher Axial Pump
45lbs
36 x 14 x 13

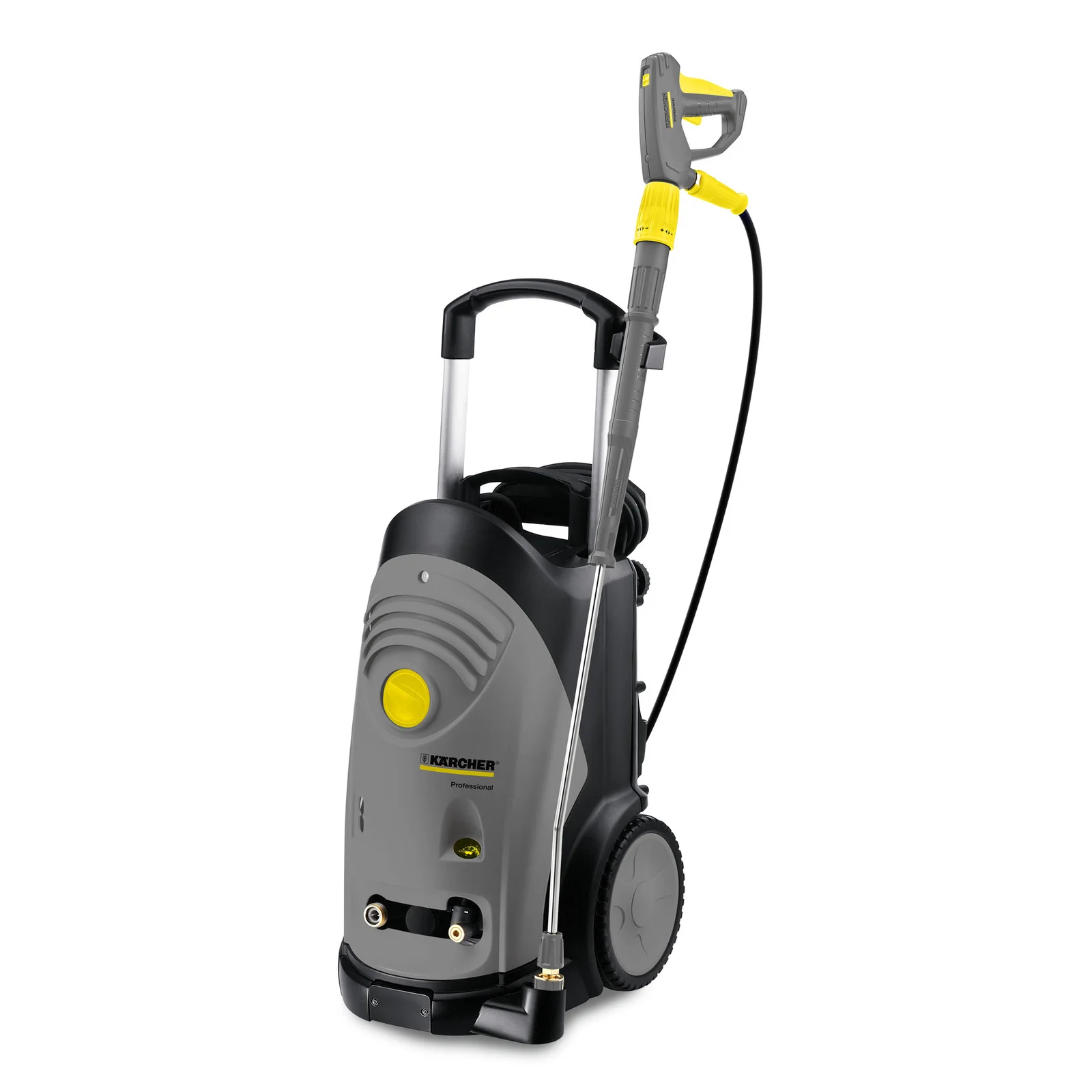

HD Mid Class
Loaded with features
This medium class machine is extremely mobile and user-friendly with low-speed four-pole single phase motor for continuous use.
Features:
Unique CHEM switch system allows operator to switch between two on-board detergent tanks without interruption; includes precise two-way metering valve to accurately vary detergent volume.
Robust, three-piston axial pump feature detergent-resistant brass cylinder head and stainless valves; pump is protected by pressure switch and overflow valve.
Features ground-fault circuit interrupter (GFCI) for operator safety.
Model | GPM | PSI | Drive | HP | Electrical | Amps | Pump | Ship Weight | Ship Dimensions |
HD 3.0/20-4M Ea | 1.3 – 3.0 | 435-2000 | Direct | 4.7 | 220-240V / 1ph | 20 | Kärcher Axial | 105 | 44 x 18 x 20 |

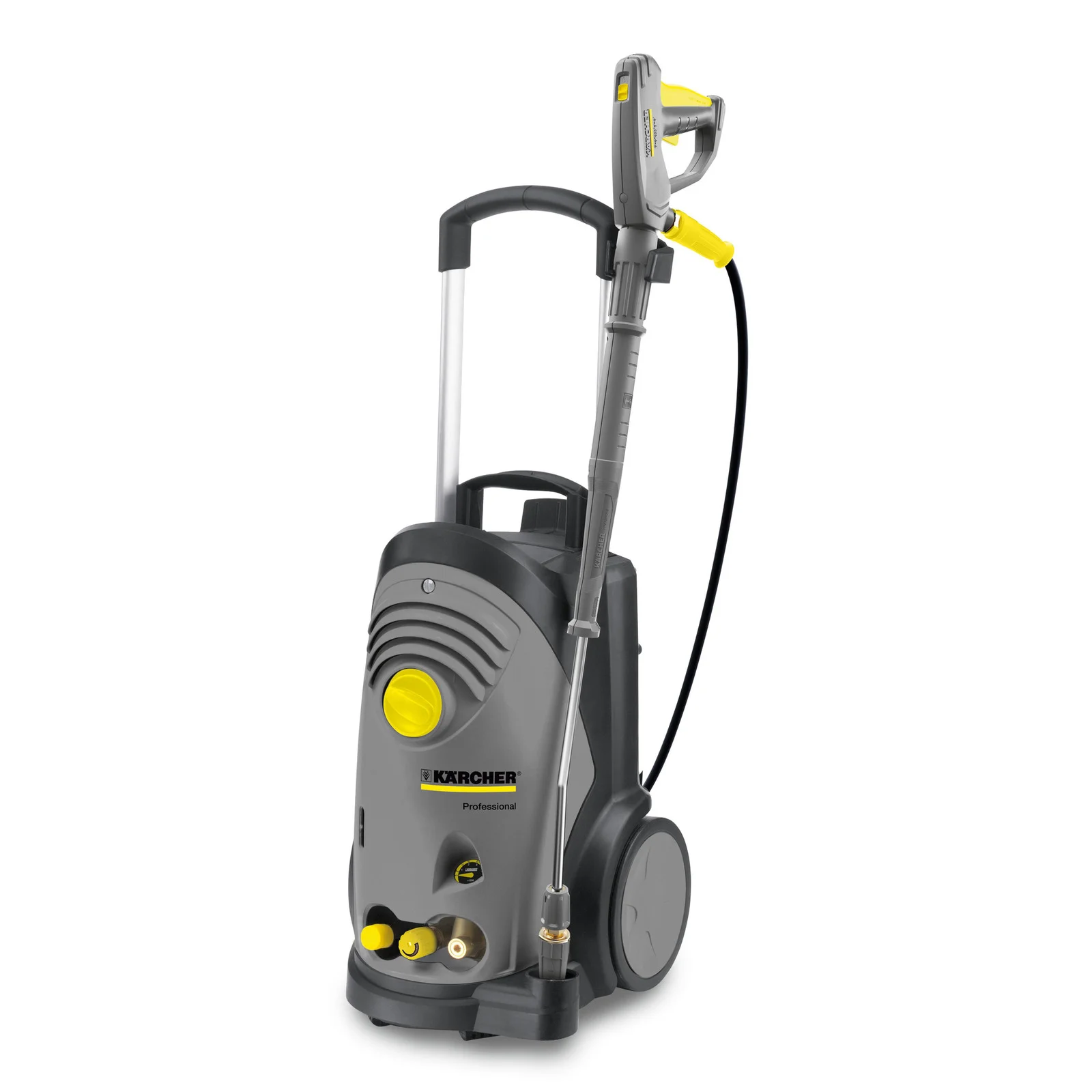

HD COMPACT CLASS
The compact class – fast and thorough
This reliable, compact unit offers the benefits of low weight, compact dimensions, easy handling and high cleaning performance. Ideal for workshops, courtyards, etc. It also includes an automatic pressure relief system for protecting the pump.
Model | HD 2.3/15 C Ed | HD 3.0/20 C Ea |
GPM | 2 | 3 |
PSI | 1500 | 2000 |
Drive | Direct | Direct |
Electrical | 120V / 1ph | 240V / 1ph |
Amps | 20 | 20 |
Pump | Kärcher Axial | Kärcher Axial |
Ship Weight | 77 | 77 |
Ship Dimensions | 28 x 15 x 39 | 28 x 15 x 39 |
HD SUPER CLASS
For tough jobs in non-stop use
Where vast amounts of dirt accumulate every day, reliable Kärcher super class models provide indispensable services. This machine includes an automatic pressure relief system for protecting the pump. Ideal for use in the construction, agricultural and forestry sectors as well as industrial and municipal facilities.
Features:
Servo Control
Auto Shutdow
Easy!Force
Easy!Lock
Flat Free Tires
Model | GPM | PSI | Drive | HP | Electrical | Amps | Pump | Ship Weight | Ship Dimensions |
HD 3.5/30-4S Ea | 1.8-3.5 | 435-3000 | Direct | 9 | 220/240V / 1ph | 28 | Kärcher Axial | 178 | 47” x 21” x 23” |
HD 4.5/32-4S Eb | 2.2-4.5 | 435-3200 | Direct | 10 | 230V / 3ph | 25 | Kärcher Axial | 178 | 47” x 21” x 23” |
HD 4.5/32-4S Ec | 2.2-4.5 | 435-3200 | Direct | 10 | 460V / 3ph | 14 | Kärcher Axial | 160 | 47” x 21” x 23” |
HD Special Class
For strict hygiene requirements
Cold water high-pressure cleaner was designed specifically for all- purpose industrial use in the sanitary/food industry. This top-of-the range machine from the compact class allows you to regulate pressure and water flow seamlessly.
Features:
Food-safe, non-marking high-pressure hose.
Wear-resistant and non-marking gray wheels.
Accepts inlet water at temperatures up to 180 F.
Easy access to the variable pressure and water flow regulation and the "Inno Foam Set" high-pressure foam system can be used.
EASY!Force gun with cruise control like technology
Model | GPM | PSI | Drive | HP | Electrical | Amps | Pump | Ship Weight | Ship Dimensions |
HD 2.3/14 C Ed Food | 2.30 | 1400 | Direct | 3.2 | 120V / 1ph | 20 | Kärcher Axial | 78 | 39 x 15 x 28 |
HD ROLL CAGE
Specialty applications
These belt-drive, electric roll cage models feature cleaning power of 5000 PSI and are available with either 230/3 phase or 460/3 phase motors. These units are specialty machines perfect for use in the marine market cleaning the bottom of boats or in the concrete industry, mixers, forms and handling equipment. Both models are ETL safety certified.
Model | HD 5.0/50 Eb | HD 5.0/50 Ec |
GPM | 5 | 5 |
PSI | 5000 | 5000 |
Drive | Belt | Belt |
HP | 20 | 20 |
Electrical | 230V / 3ph | 460V / 3ph |
Amps | 48 | 26 |
Pump | Kärcher KX | Kärcher KX |
Ship Weight | 524 | 524 |
Ship Dimensions | 42 x 26 x 30 | 42 x 26 x 30 |
Durable:
Rugged steel chassis & roll cage
Kärcher Belt-drive crankcase pump
Cleaning power of 5000 PSI
Flat-free tires
20 HP motor
50’ high-pressure hose
HD SERIES ELECTRIC
Designed for versatility
Kärcher’s HD carts are corrosion-resistant aluminum pressure washers that easily convert from a cart to a skid for maximum cleaning versatility and durability. These reliable electric powered pressure washers have a low profile handle and compact footprint, making them easy to maneuver, and they offer a bypass loop for additional pump protection. 7-year pump warranty and flat-free tires.
Features:
Durable, corrosion resistant aluminum frame
Modular design - weld free frame easily converts from cart to skid
VRT3 Unloader with bypass loop - pump protection
Commercial-duty Leuco crankcase pump
Model | GPM | PSI | Drive | HP | Electrical | Amps | Pump | Pump RPM | Ship Weight | Ship Dimensions |
HD 2.0/1000 Ed | 2.00 | 1000 | Direct | 1.5 | 120V / 1ph | 15 | Kärcher KF | 1725 | 161 | 41” x 22” x 25” |
HD 1.9/1300 Ed | 1.90 | 1300 | Direct | 2 | 120V / 1ph | 20 | Kärcher KF | 1725 | 175 | 41” x 22” x 25” |
HD 3/1000 Ea | 3.00 | 1000 | Direct | 2 | 120V / 1ph | 20 | Kärcher KF | 1725 | 180 | 41” x 22” x 25” |
HD 3.5/2000 Ea | 3.50 | 2000 | Direct | 5 | 230V / 1ph | 22 | Kärcher KF | 3450 | 181 | 41” x 22” x 25” |

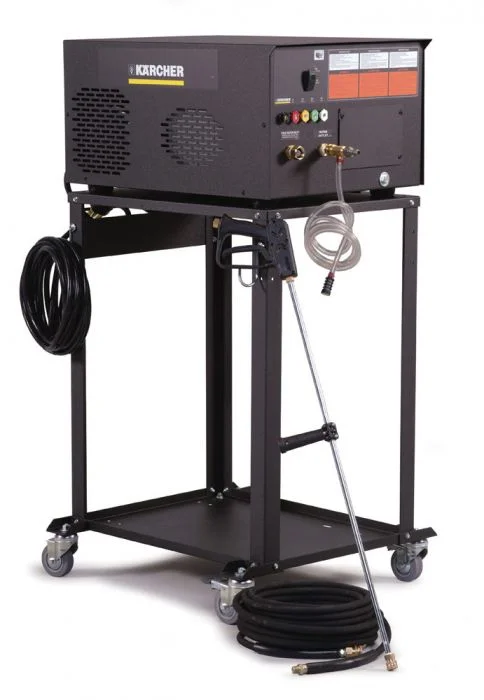

HD CABINET - BELT DRIVE
Industrial throughout
Our cold-water cabinet units accept pre-heated water up to 180°F. Protected in durable steel cabinets, they demonstrate industrial strength throughout, including belt-drive Kärcher crankcase pumps, industrial motors, and magnetic starters for operator safety.
Wheel kit:
Wheel kit with detergent rack and optional hose reel.
Floor stand with caster wheels.



Model | GPM | PSI | Drive | HP | Electrical | Amps | Pump | Ship Weight | Ship Dimensions |
HD 2.8/10 ST Ed | 2.8 | 1000 | Belt | 2 | 120V / 1ph | 20 | Kärcher KM | 210 | 31 x 21 x 16 |
HD 4.2/20 ST Ea | 4.2 | 2000 | Belt | 6 | 230V / 1ph | 29 | Kärcher KM | 285 | 31 x 21 x 16 |
HD 4.2/20 ST Eb | 4.2 | 2000 | Belt | 6 | 230V / 3ph | 22 | Kärcher KM | 255 | 31 x 21 x 16 |
HD 4.2/20 ST Ec | 4.2 | 2000 | Belt | 6 | 460V / 3ph | 11 | Kärcher KM | 260 | 31 x 21 x 16 |
HD 4.2/20 ST Eh | 4.2 | 2000 | Belt | 6 | 208V / 3ph | 16 | Kärcher KM | 265 | 31 x 21 x 16 |
HD 3.5/30 ST Ea | 3.5 | 3000 | Belt | 7.5 | 230V / 1ph | 36 | Kärcher KM | 330 | 31 x 21 x 16 |
HD 3.5/30 ST Eb | 3.5 | 3000 | Belt | 7.5 | 230V / 3ph | 19 | Kärcher KM | 275 | 31 x 21 x 16 |
HD 3.5/30 ST Ec | 3.5 | 3000 | Belt | 7.5 | 460V / 3ph | 11 | Kärcher KM | 270 | 31 x 21 x 16 |
HD 3.5/30 ST Eg | 3.5 | 3000 | Belt | 7.5 | 208V / 1ph | 38 | Kärcher KM | 332 | 31 x 21 x 16 |
HD 3.5/30 ST Eh | 3.5 | 3000 | Belt | 7.5 | 208V / 3ph | 23 | Kärcher KM | 271 | 31 x 21 x 16 |

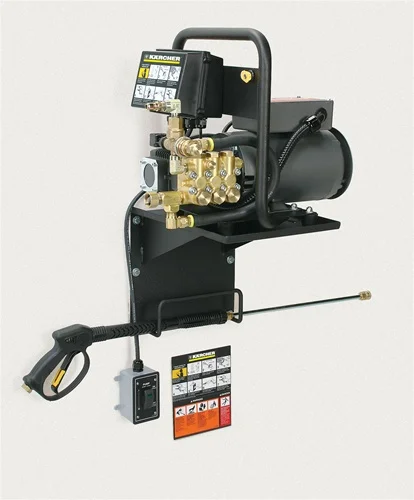

HD WALL MOUNTED
Convenient and quiet
Kärcher’s wall-mount unit has a durable steel frame, uses a quiet 1725 RPM motor, and is perfect for in-shop uses. A remote on/off switch with a 10’ electrical cord allows the machine to be mounted high on a wall away from backspray.
Features:
Accepts hot water up to 180 degrees
Remote on/off switch
Kärcher Triplex crankcase pump
Specs:
Model HD 2.0/14 Ed +
1.8 GPM
1400 PSI
Direct Drive
2 HP
120V / 1ph
20 Amps
Kärcher KE Pump
123lbs
20” x 19” x 17”
