KM 70/20 C

Lightweight and simple – for quick clean-ups

The KM 70/20 C is ideal for sweeping small areas indoors and outdoors. It cleans better and faster than a broom and is almost dust-free thanks to the controlled air flow and integrated dust filter.

Durable & Efficient

Roller broom driven via both wheels
Direct-throw sweeping
Limited slip differential drive system
Adjustable side broom and roller broom
Dust filter cleans the exhaust air and prevents dust creation while sweeping


			Model
			Cleaning Path
			Width w/ 1 Side Broom
			Width w/ 2 Side Brooms
			Drive
			Max. Area Performance
			Sweeping Method
			Waste Container
			Weight
			Dimensions

			KM 70/20 C
			28”
			18.8”
			-
			Manual
			 30,000 Sq Ft Hr
			Direct Throw
			11gal / 1.5 Cubic Ft
			51 lbs
			51 x 30 x 41

			KM 70/20 C 2SB
			38”
			18.8”
			38”
			Manual
			 39.600 Sq Ft Hr
			Direct Throw
			11gal / 1.5 Cubic Ft
			57 lbs
			51 x 38 x 41

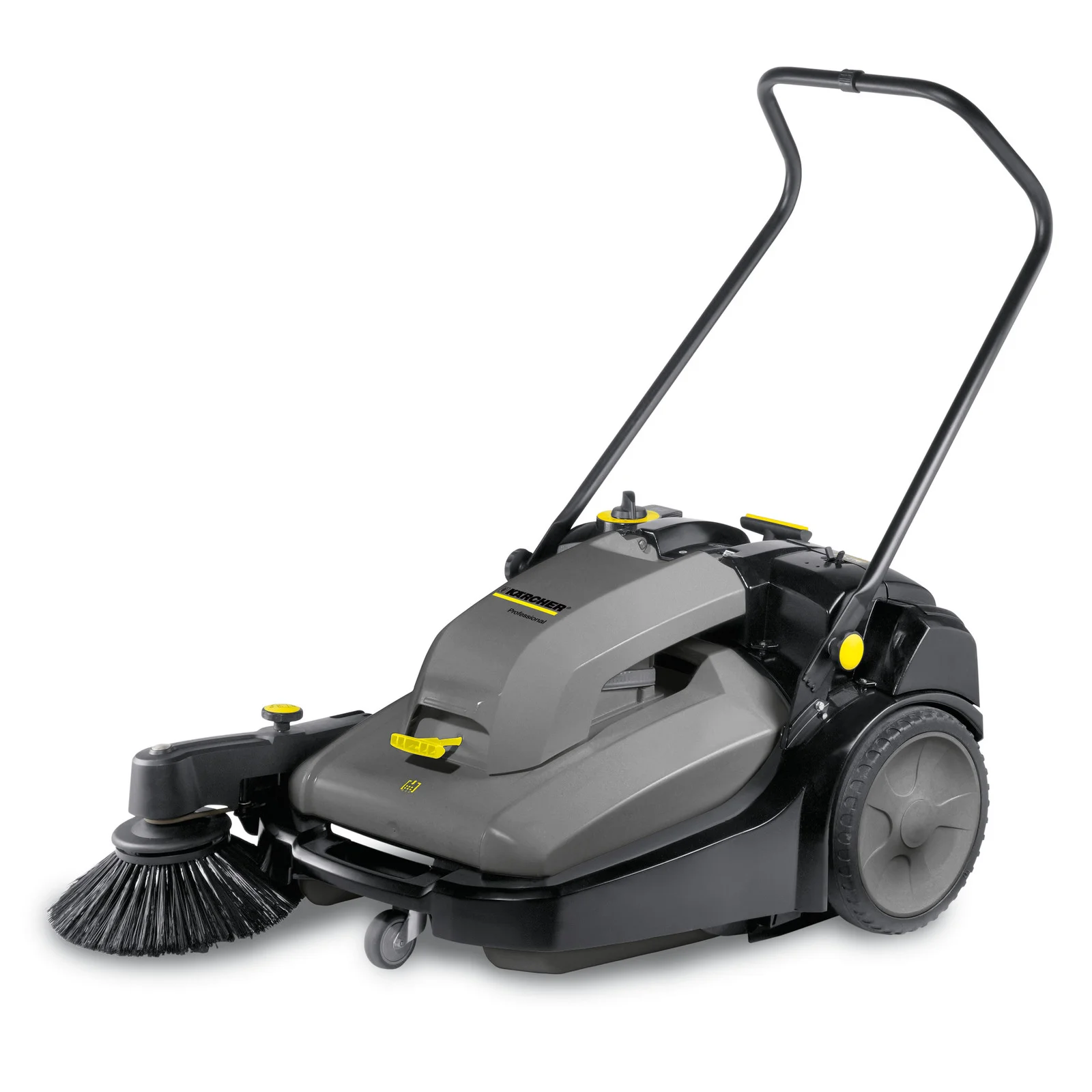

KM 70/30 C BP ADV

Compact, convenient and universal

The extremely compact and efficient KM 70/30 C Bp Adv sweeps silently. Main roller broom and side broom with electric drive – cleans right into the corners, suitable for indoor and outdoor use.

Productive Sweeping

Electric suction fan for removing fine dust from the waste container.
Fine dust suction can be switched off for sweeping in wet weather.
Electrically powered main roller broom and side broom
Continuously adjustable roller broom and side broom
Easy to use program selector switch


			Cleaning Path
			Width w/ 1 Side Broom
			Drive
			Power
			Max. Area Performance
			Waste Container
			Filter Area
			Charging Time
			Operating Time
			Weight
			Dimensions

			28”
			28
			Battery
			12 V / 150 Watts
			 30,800 Sq Ft Hr
			11gal / 1.5 Cubic Ft
			945” Sq
			12 Hr
			3.5 Hr
			105 lbs w/out Battery
			50 x 28 x 45

KM 75/40 W BP

Clean entry into the walk-behind class

Compact and agile, the KM 75/40 W Bp cleans small to medium- sized areas with excellent results. With convenient traction drive and powerful vacuum system, available with silent battery-powered motor.

Easy To Use:

Over throw sweeping system with an easily removable hopper makes emptying quick and efficient
Roller broom changeover without tools
Air is vacuumed through a high-efficiency automotive style filter
Efficient filter cleaning system with clean filter replacement without tools


			Width w/ 1 Side Broom
			Drive
			Max. Area Performance
			Waste Container
			Power Source
			Sweeping Method
			Climbing Ability
			Working Speed
			Filter Area
			Weight
			Dimensions

			30”
			DC Motor – 5hp – 400 Watts
			 36,328 Sq Ft Hr
			10.5gal / 1.4 Cubic Ft
			2 x 12V 70 ah AGM Batteries
			Overthrow
			12.00%
			2.8 MPH
			2,790” Sq
			172 lbs w/out Battery
			56 x 30 x 47

Cleaning Path	Width w/ 1 Side Broom	Drive	Power	Max. Area Performance	Waste Container	Filter Area	Charging Time	Operating Time	Weight	Dimensions
28”	28	Battery	12 V / 150 Watts	30,800 Sq Ft Hr	11gal / 1.5 Cubic Ft	945” Sq	12 Hr	3.5 Hr	105 lbs w/out Battery	50 x 28 x 45
