Magido Manual Parts Washers

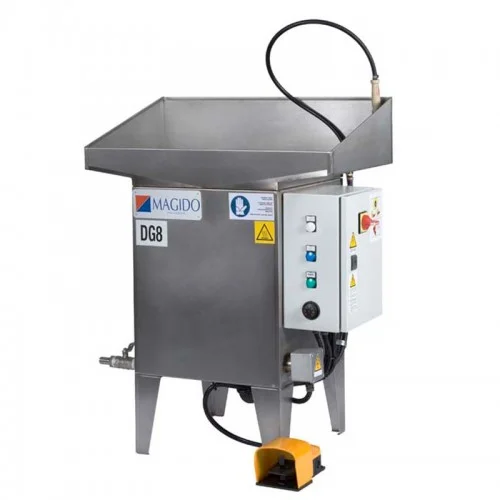

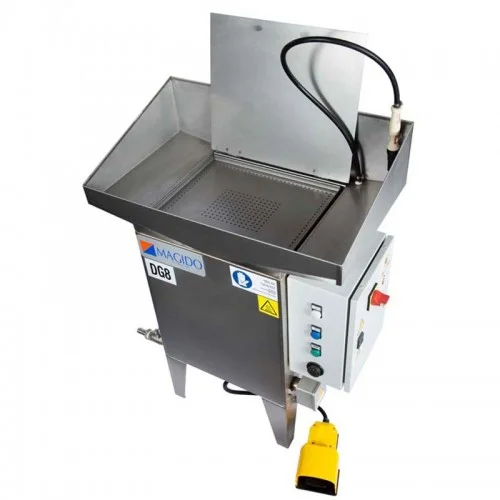

DG-8

The Magido DG-8 model is manual sink-style parts washer that will adapt to any workplace due to it’s small size. The wash system is constructed using AISI 304 stainless steel unlike most of the traditional washers on the market that are made from thin plastic. Each washer is equipped with an external magnetic drive pump, flo-thru brush, heater and a liquid level sensor to protect the washer

Features:

  • Stainless Steel Construction

  • External Magnetic Drive Pump

  • Flo-Thru Brush

  • Electrical Heater Controlled By Thermostat

  • Liquid Level Shut Off

  • Tank Drain

Specifications:

  • Wash Tank Capacity - 26.5 gal

  • Working Dimensions - 33.5" x 19.5"

  • Volatge - 115V / 19A

  • Net Weight - 121lbs

  • Overall Dimensions - 37.5" x 19.5" x 43.5"

DG-9

The Magido DG-9 model is manual sink-style parts washer that will adapt to any workplace due to it’s small size. The wash system is constructed using AISI 304 stainless steel unlike most of the traditional washers on the market that are made from thin plastic. Each washer is equipped with an external magnetic drive pump, flo-thru brush, heater and a liquid level sensor to protect the washer.

Features:

  • Stainless Steel Construction

  • External Magnetic Drive Pump

  • Flo-Thru Brush

  • Electrical Heater Controlled By Thermostat

  • Liquid Level Shut Off

  • Tank Drain

Specifications:

  • Heater / Temp - 2Kw - 113 F

  • Wash Tank Capacity - 34.5 gal

  • Working Dimensions - 33.5" x 19.5"

  • Volatge - 115V / 19A

  • Net Weight - 121lbs

  • Overall Dimensions - 37.5" x 19.5" x 43.5"

l-7

The Magido L-7 model is manual vat-style parts washer that will adapt to any workplace due to it’s small size with the added flexibility to soak your parts. The wash system is constructed using AISI 304 stainless steel unlike most of the traditional washers on the market that are made from thin plastic. Each washer is equipped with an external magnetic drive pump, flo-thru brush, heater and a liquid level sensor to protect the washer.

Features:

  • Stainless Steel Construction

  • External Magnetic Drive Pump

  • Flo-Thru Brush W/Flexible Spigot Removable Work Shelves

  • Electrical Heaters Controlled By Thermostat

  • Liquid Level Shut Off

  • Tank Drain

Specifications:

  • Heater / Temp - 2kW -113 F

  • Wash Tank Capacity - 24 gal

  • Working Dimensions - 27.5" x 19.25”

  • Volatge - 115V / 19A

  • Load Weight - 300lbs

  • Overall Dimensions - 48.5” x 27” x 43”

L-10

The Magido L-10 model is manual vat-style parts washer that will adapt to any workplace due to it’s small size with the added flexibility to soak your parts. The wash system is constructed using AISI 304 stainless steel unlike most of the traditional washers on the market that are made from thin plastic. Each washer is equipped with an external magnetic drive pump, flo-thru brush, heater and a liquid level sensor to protect the washer.

Features:

  • Stainless Steel Construction

  • External Magnetic Drive Pump

  • Flo-Thru Brush W/Flexible Spigot Removable Work Shelves

  • Electrical Heaters Controlled By Thermostat

  • Liquid Level Shut Off

  • Tank Drain

Specifications:

  • Heater / Temp - 2kW -113 F

  • Wash Tank Capacity - 40 gal

  • Working Dimensions - 34” x 29.5

  • Volatge - 115V / 19A

  • Load Weight - 300lbs

  • Overall Dimensions - 55” x 35” x 43”

HP Series Manual Jet Spray Washers

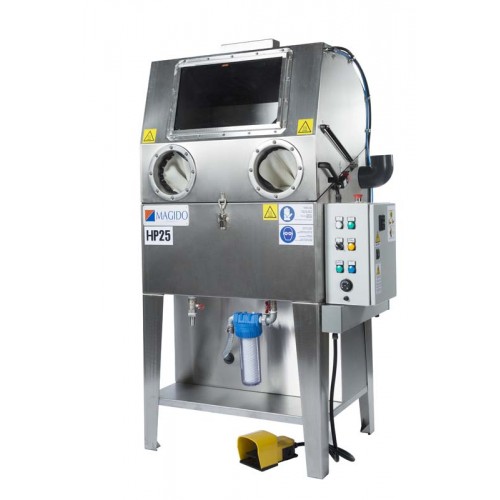

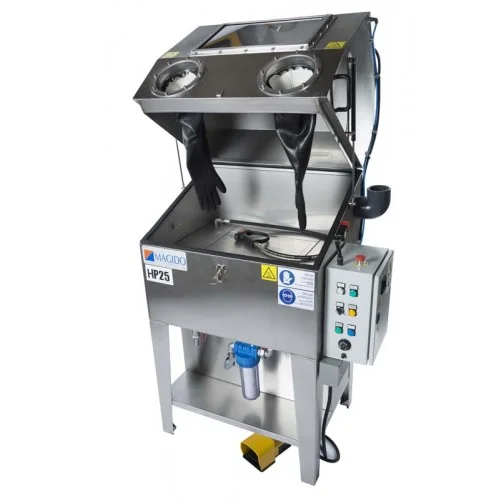

HP-25

The Magido HP-25 is a heated water blasting cabinet made entirely of AISI 304 stainless steel. This wash system was developed for technicians that need to reduce their cleaning time by simply blasting the parts clean with a heated aqueous solution. The high-pressure spray wand capable of delivering up to 750 psi!

Features:

  • Stainless Steel Construction

  • Easy To Handle Spray Wand

  • High Pressure Diaphragm Pump

  • Foot Pedal Operation

  • Solution Filter

  • Hinged Front Door Allows Access To Entire Cleaning Chamber

  • Thermostat Controlled Electrical Heater

  • Automatic Liquid Level Shut Off

  • Tank Drain

Specifications:

  • Heater / Temp - 3kW -113 F

  • Pump & PSI - 3.7 GPM – 430-870 psi

  • Working Dimensions - 31.5” x 23” x 19.5”

  • Load Weight - 350lbs

  • Overall Dimensions - 37” x 45” x 79.5” (lid open)

The Magido HP-30 is a heated water blasting cabinet made entirely of AISI 304 stainless steel. This wash system was developed for technicians that need to reduce their cleaning time by simply blasting the parts clean with a heated aqueous solution. The high-pressure spray wand capable of delivering up to 750 psi!

Features:

  • Stainless Steel Construction

  • Easy To Handle Spray Wand

  • High Pressure Diaphragm Pump

  • Foot Pedal Operation

  • Solution Filter

  • Hinged Front Door Allows Access To Entire Cleaning Chamber

  • Thermostat Controlled Electrical Heater

  • Automatic Liquid Level Shut Off

  • Tank Drain

Specifications:

  • Heater / Temp - 4kW -113 F

  • Pump & PSI - 3.7 GPM – 430-870 psi

  • Working Dimensions - 47.5” x 27.5” x 19.5”

  • Load Weight - 350lbs

  • Overall Dimensions - 39” x 60” x 82” (lid open)

Compare Magido Manual Models


 DG – 8 DG – 9 L – 7 L – 10 HP – 25 HP – 30
Wash Tank Capacity 26.5 gal 34.5 gal 24 gal 40 gal 40 gal 45 gal
Working Dimensions 33.5" x 19.5" 33.5" x 19.5" 27.5” x 19” 34” x 29.5 31.5” x 23” x 19.5” 47.5” x 27.5” x 19.5”
Voltage 115V / 19A 115V / 19A 115V / 19A 115V / 19A Custom Custom
Load Weight 300lbs 300lbs 300lbs 300lbs 350lbs 350lbs
Heater / Temp 2kW -113 F 2kW -113 F 2kW -113 F 2kW -113 F 3kW -113 F 4kW -113 F
Pump & PSI 238 GPH 238 GPH 3.5 GPM 3.5 GPM 3.7 GPM – 430-870 psi 3.7 GPM – 430-870 psi
Overall Dimensions 37.5" x 19.5" x 43.5" 37.5" x 19.5" x 43.5" 48.5” x 27” x 43” 55” x 35” x 43” 37” x 45” x 79.5” (lid open) 39” x 60” x 82” (lid open)
Net Weight 121lbs 121lbs 155lbs 210lbs 319lbs 400lbs
